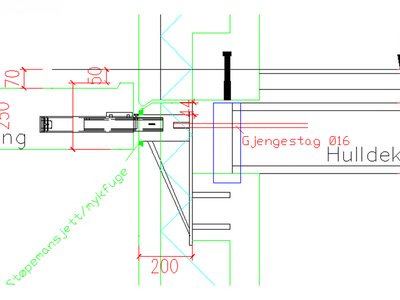

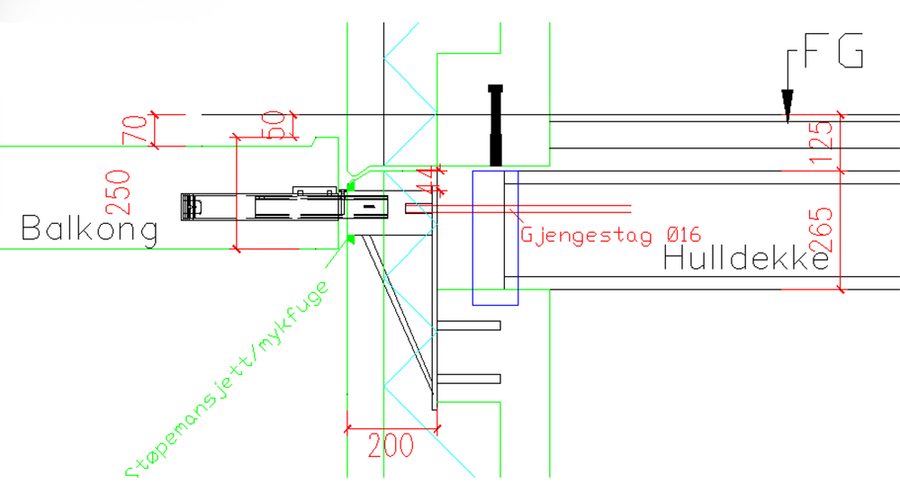

BWC WB - Balcony Wall Connection Wall Bracket.
Has been developed for use in prefabricated concrete sandwich walls (insulated wall elements). This is a pure shear connection that is used in walls where balconies have front columns or inclined braces. The system can also be used on steel columns, RHS profiles etc
The system consists of several parts:
BWC WB: The part that is molded into the factory that produces the wall elements, and flush with the outer layer.

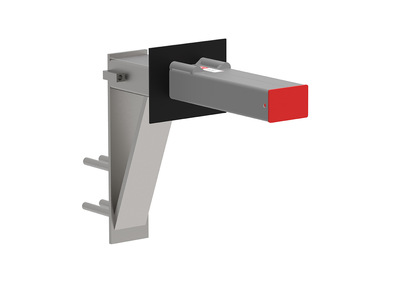

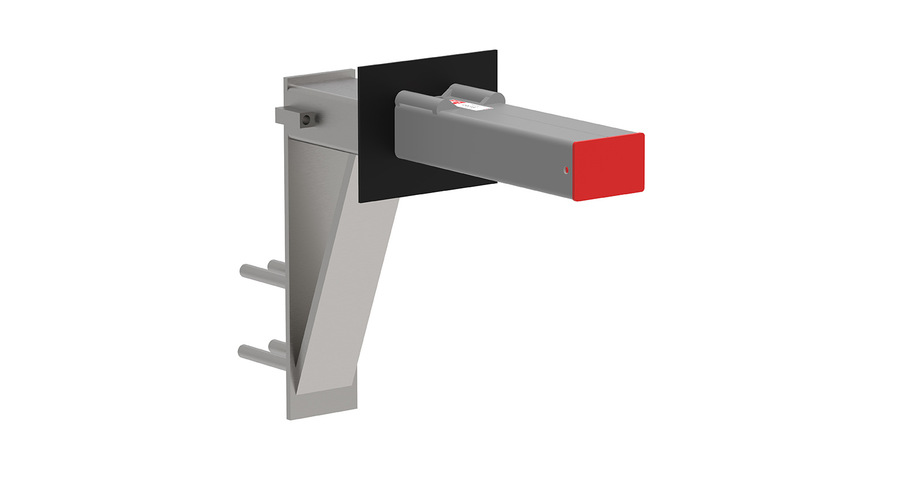

In some cases, BWC WB is combined with a staircase connection TSS/RVK.
All parts are made of steel S355, and hot-dip galvanized.
See more in Invisible Connections ® Memo 705
| Max. shear force(kN) | 55 kN | |
| Max. breaking load horizontal(kN) | 20 kN |
| BWC WB The goals are project specific |  |
| TSS (see drawing TSS stair connection) |  |
Technical information / Memo
| Memo nr | Navn / nedlastning | Format | |
|---|---|---|---|
| Memo nr 700 | BWC 55 740 BWC 55 LIGHT VEILEDNING | PFD |  |
| Memo nr 701b | BWC 55 light, tekniske spesifikasjoner | PFD | |
| Memo nr 702b | BWC 55 light, beregning av forankringsarmering | PFD | |
| Memo nr 703b | BWC 55 light, eksempel forankringsarmering | PFD | |
| Memo nr 704 | BWC 55 740 og BWC 55 Light, eksempel | PFD | |
| Memo nr 705 | BWC WB for isolerte veggelement | PFD | |
TSS 60 P consisting of an outer- and an inner tube.
The outer tube is made of 100% recycled HDPE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position. It also have user-friendly "clips" to place reinforcing bars in the correct position.
The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.
Invisible Connections TSS 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
TSS 60 P can be used between stair and landing, see picture below.
RVK 60 P stair connection consists of outer and inner tube.
The outer tube is made from 100% recycled HDPE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.
Invisible Connections RVK 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with IC Box 100 SRU
TSS 101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position.
The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
RVK101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
