Bal­cony connections

The market's only provider of balcony connections with a thermal bridge solution, stepsound reduced and a waterproofing solution.

Made in Norway

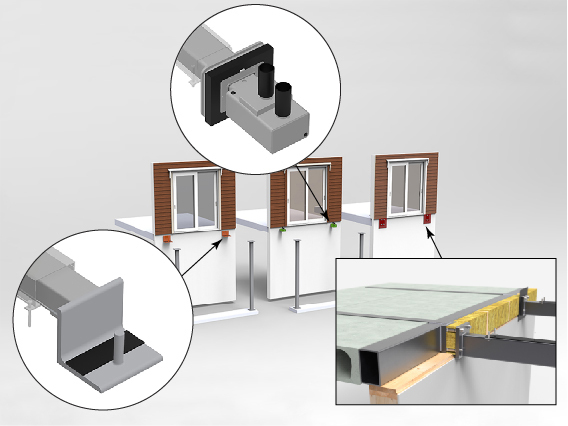

Options:

  • On a steel angle
  • With balcony box (BWC 55-4)
  • Cantilevered

A solution with the advantage that the balcony can be established when the outerwall is finished.

Benefits of using BWC:

  • Thermal bridge breaker.
  • Waterproof.
  • Stepsound reduction.
  • No welding on-site.
  • Resources / drawing 2D og 3D.
  • CE/UKCA marked and tested solution.
  • Made in Norway

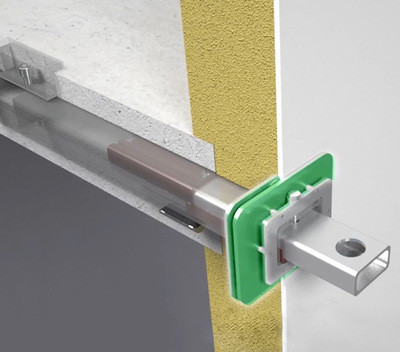

Super vanntetting 620

Thermal bridge breaker and waterproof

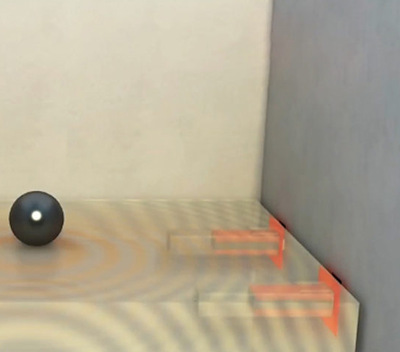

Trinnlydsdemping 620

Stepsound reduction

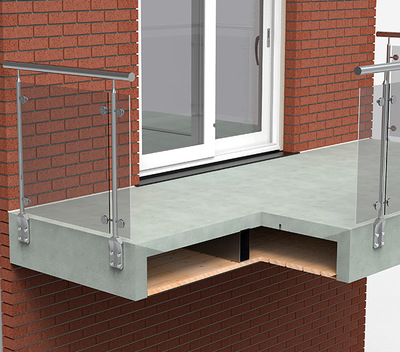

Ettermontering 620

Economical and efficient advantages

Bilde godkjenning sert 620

CE marked and tested

Guidance

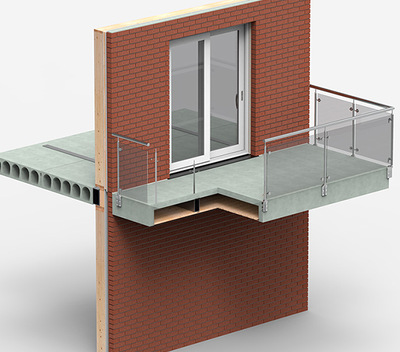

BWC 40 U hulldekke 600x600

Instructions cantilevered balconies

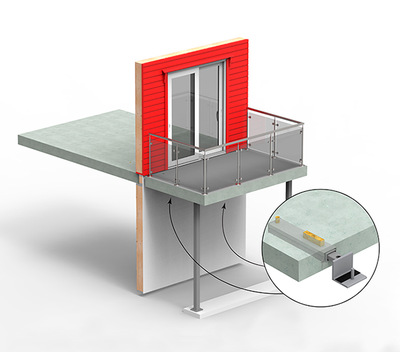

BWC 55 light med vinkel heil balkong thumbnail

Instructions for balconies with shear(kN) connections

Cantilevered balconies

BWC 40 U H 400

BWC 40 U-H

System that is welded to a steel plate, RHS profile, U beam, HSQ, Deltabeam etc.
BWC 30 U L

BWC 40 utligger

This is the cantilevered profile (RHS, I beam or flat steel) which supports, for example, a thin concrete slab, metallic or wooden balconies.
BWC 40 plate og BWC 40 U H

BWC Plate 40 U-H

BWC U-H is Invisible Connections®'s system where the unit with bolt group, insulation layer and sealing layer is welded to options such as: Sheet metal in cover edge, HUP, HSQ etc.
BWC 40 U BWC 40 U T

BWC 40 U-T, BWC 40 U

BWC U-H is Invisible Connections®'s system where the unit with bolt group, insulation layer and sealing layer is welded to options such as: Sheet metal in cover edge, HUP, HSQ etc.

Balcony connection with shear(kN) force and simpel waterproofing

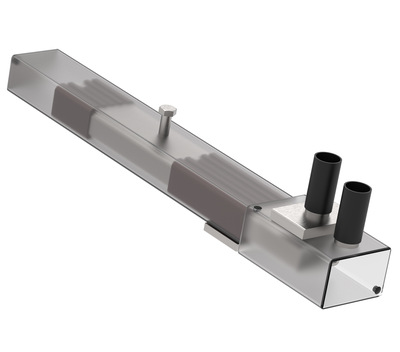

BWC 55 light med balkongboks

BWC 55 light with balcony box 55-4

For for balconies with shear(kN) connections with simple waterproofing. Molded cover or hollow core.

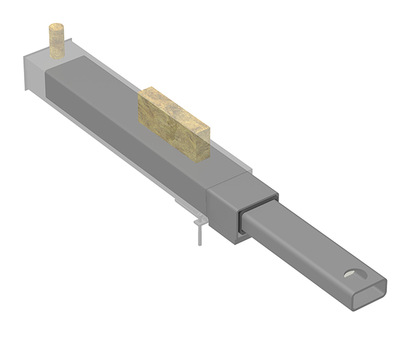

BWC 55 light for plasstøpte balkonger komplett kvadrat

BWC 55 light for cast-in-place balconies

For cast-in-place balconies with shear(kN) connection, simple waterproofing. Molded cover or hollow core.

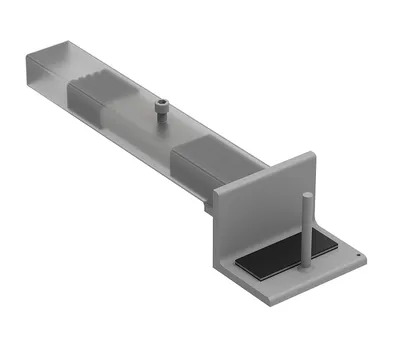

BWC light ytterør og innerør m vinkel b

BWC 55 light with angel

For cast-in-place balconies with shear(kN) connection, simple waterproofing. Molded cover or hollow core.

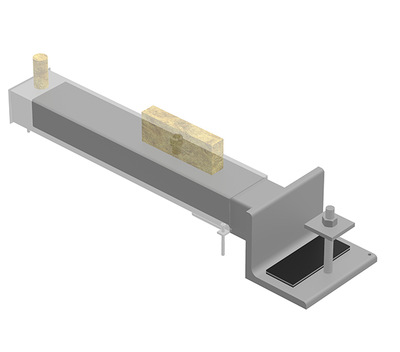

BWC 55 ligth for negativ last og ytterrør kvadrat

BWC 55 light with angle for negative load

For cast-in-place balconies with shear(kN) connection, simple waterproofing. Molded cover or hollow core.

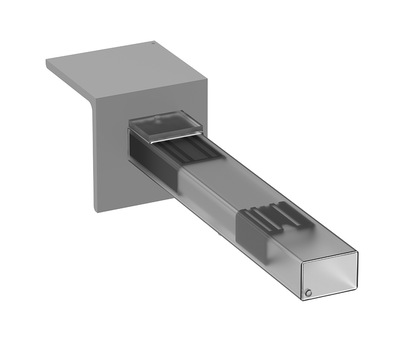

BWC 55 light reversert

BWC 55 light with angle for negative load

For cast-in-place balconies with shear(kN) connection, simple waterproofing. Molded cover or hollow core.

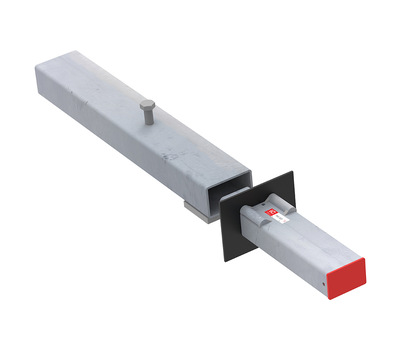

BWC 55 light med TSS 102 b

BWC 55 light with stair connection TSS

For column in front with simple waterproofing. Molded cover or hollow core.

Balcony connection with shear(kN) force and waterproofing

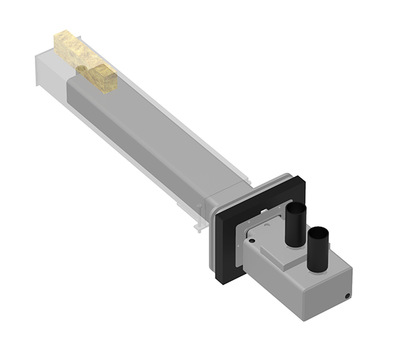

BWC 55 740 m 55 4 komplett 1 kvadrat

BWC 55-740 with balcony box 55-4

For for balconies with shear(kN) connections with waterproofing. Molded cover or hollow core.

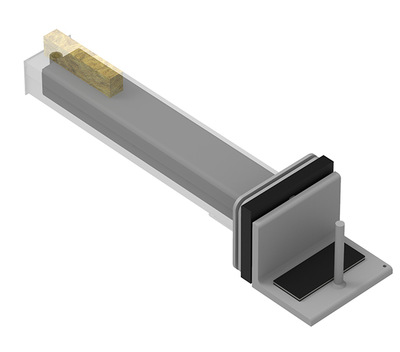

BWC 55 740 med vinkel ytterrør med utspaingsboks 2

BWC 55-740 with an angel

For prefabricated balconies with column/slanted braces at the front, with clamping flange for good waterproofing. Molded cover or hollow core.

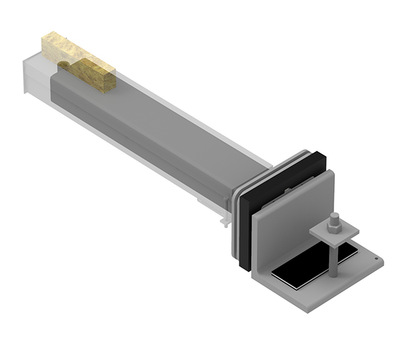

BWC 55 740 2 V N komplett 1

BWC 55-740 with an angel for negative load

For prefabricated balconies with column/slanted braces at the front, clamping flange for good waterproofing and with an angle for negative load. Molded cover or hollow core.

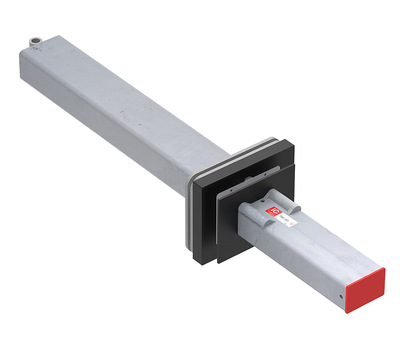

BWC 55 740 ytterør i komb med TSS 102 b

BWC 55-740 outer tube in combination with TSS unit

For for balconies with shear(kN) connections with waterproofing. Molded cover or hollow core.

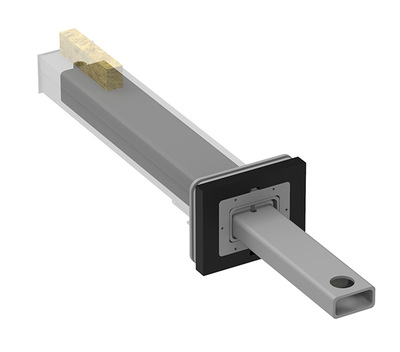

BWC 55 740 2b for plasstøpte balkonger 1

BWC 55-740 for cast-in-place balconies

For cast-in-place balconies with columns/slanted braces at the front, with clamping flange - good waterproofing. Molded cover or hollow core.

Balcony connection with shear(kN) force for sandwich wall

BWC VW 40 BWC med balkongboks iron

BWC WB with balcony box BWC 55-4

For column in front/slanted braces and prefabricated concrete sandwich walls. Good waterproofing.
BWC VW 40 BWC bwc 50 240 med vinkel iron

BWC WB unit used with inner tube with angle

For column in front/slanted braces and prefabricated concrete sandwich walls. Good waterproofing.
BWC VW 40 BWC TSS iron

BWC WB and TSS unit

For column in front/slanted braces and prefabricated concrete sandwich walls. Good waterproofing.
