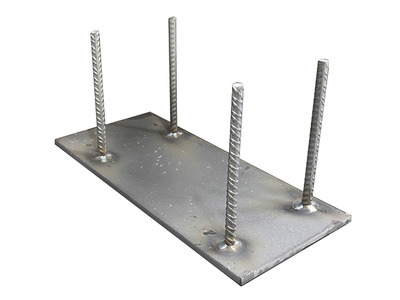

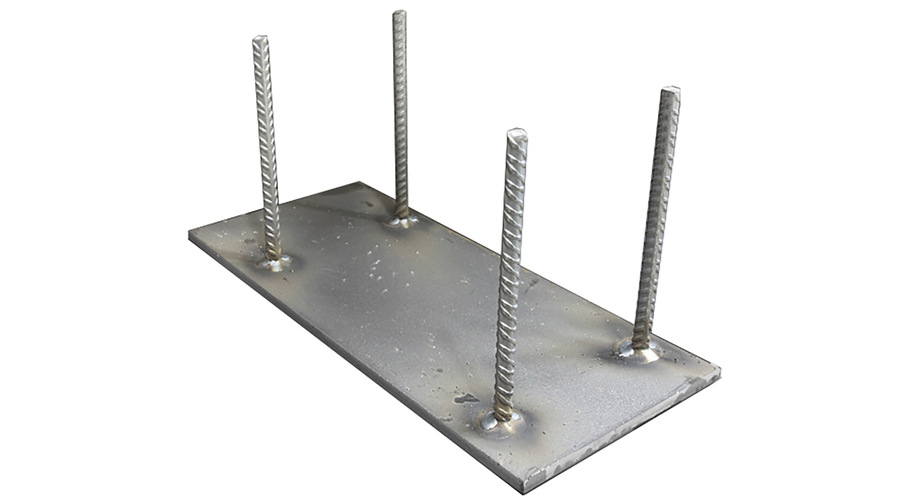

Welding plates
- Products→
- Welded connections→
- Welded connections→
- Welding plates
Invisible Connections AS produces a number of different robot-welded plates for:
- SDT
- Hollow cores
- Walls
- General use.
All our products have a technical drawing basis for TEKLA, AutoCad, inventor
Welding plates hollow cores
| d | a | Rebar | Rebar | ||||||||
| Type | B x L x t | H | 1 | 2 | 3 | 1 | 2 | 3 | Quantity | Ø | Weight |
| 04 141 0 | 200x350x10 | 140 | 110 | 190 | 50 | 30 | 140 | 30 | 4 | 12 | 6,13 |
| 04 143 0 | 200x450x10 | 210 | 110 | 290 | 50 | 30 | 140 | 30 | 4 | 12 | 8,00 |
| NB200x200 | 200x200x10 | 110 | 55 | 90 | 55 | 55 | 90 | 55 | 4 | 12 | 3,70 |
| EP200x200 | 200x200x10 | 160 | 55 | 90 | 55 | 57 | 90 | 53 | 4 | 16 | 4,30 |
Welding plate hollow core calculations
| Article nr | Area of use | Calculations | Drawing |
| 04 141 0 | Skjære/moment (kN) | Beregning 04 141 0 | 04 141 0 |
| 04 143 0 | Skjære/moment (kN) | Beregning 04 143 0 | 04 143 0 |
| NB200x200 | Skjære/moment (kN) | Beregning NB200x200 | NB 200x200 |
| EP200x200 | Skjære/moment (kN) | Beregning EP200x200 | EP 200x200 |
Welding attachment DT
| d | a | Rebar | Rebatr | ||||||||
| Type | B x L x t | H | 1 | 2 | 3 | 1 | 2 | 3 | Quantity | Ø | Weight |
| 04 221 0 | 80x150x10 | 160 | 30 | 90 | 30 | 5 | 70 | 5 | 4 | 12 | |
| 04 222 0 | 90x150x10 | 160 | 30 | 90 | 30 | 10 | 70 | 10 | 4 | 12 | |
| 04 223 0 | 100x150x10 | 160 | 30 | 90 | 30 | 15 | 70 | 15 | 4 | 12 | |
| 04 224 0 | 110x150x10 | 160 | 30 | 90 | 30 | 20 | 70 | 20 | 4 | 12 | |
| 04 225 0 | 120x150x10 | 160 | 30 | 90 | 30 | 25 | 70 | 25 | 4 | 12 | |
| 04 226 0 | 130x150x10 | 160 | 30 | 90 | 30 | 30 | 70 | 30 | 4 | 12 | |
| 04 227 0 | 140x150x10 | 160 | 30 | 90 | 30 | 35 | 70 | 35 | 4 | 12 | |
| 04 228 0 | 150x150x10 | 160 | 30 | 90 | 30 | 40 | 70 | 40 | 4 | 12 | |
| 04 229 0 | 160x150x10 | 160 | 30 | 90 | 30 | 45 | 70 | 45 | 4 | 12 |
Welding plates DT calculations
| Article nr | Area of use | Calculation | Drawing |
| 04 22x 0 | Skjære/moment | Beregning 04 22x 0 |
Welding plates for wall
| d | a | Rebar | Rebar | ||||||
| Type | B x L x t | H | 1 | 2 | 1 | 2 | Quantity | Ø | Weight |
| 04 511 0 | 100 x 150 x 10 | 160 | 70 | 80 | 50 | 50 | 1 | 10 | 2,10 |
Welding plates for wall - calculations
| Article nr. | Area of use | Calculations | Drawing |
| 04 511 0 | Skjære moment (kn) | Beregning 04 511 0 | 04 511 0 |

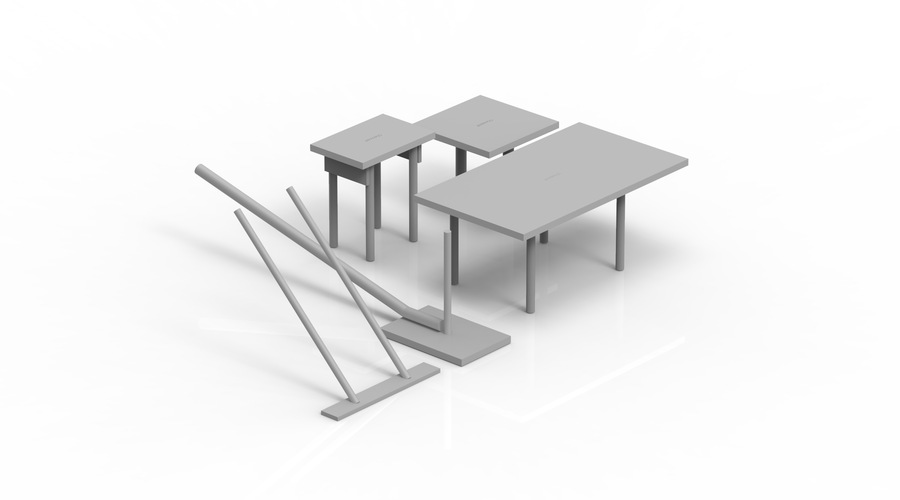

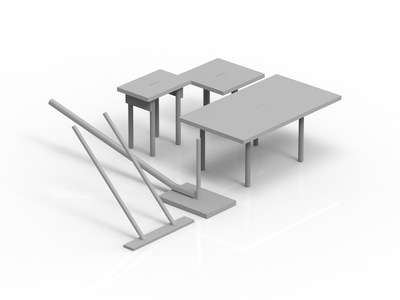

Weldingplates for general use
Weldingplates for general use
| d | a | Rebar | Rebar | ||||||||
| Type | B x L x t | H | 1 | 2 | 3 | 1 | 2 | 3 | Quantity | Ø | Weight |
| 04 071 | 150 x 150 x 10 | 130 | 30 | 90 | 30 | 75 | 75 | 2 | 16 | 2,25 | |
| 04 073 | 150 x 150 x 10 | 130 | 30 | 90 | 30 | 30 | 90 | 30 | 4 | 16 | 2,70 |
| 04 081 | 150 x 250 x 10 | 130 | 40 | 85 | 40 | 75 | 75 | 3 | 16 | 3,70 | |
| 04 083 | 150 x 250 x 10 | 130 | 40 | 85 | 40 | 30 | 90 | 30 | 6 | 25 | 6,00 |
| OB-400-0801 | 200 x 180 x 10 | 160 | 55 | 90 | 55 | 35 | 90 | 55 | 4 | 16 | 3,40 |
| 04 509 0 | 100 x 150 x 10 | 160 | 70 | 50 | 30 | 50 | 50 | 2 | 16 | 1,72 | |
| HB 100x150 | 100 x 150 x 10 | 160 | 45 | 60 | 45 | 40 | 60 | 2 | 16 | 1,72 | |
| SB 100x200 | 100 x 200 x 10 | 210 | 50 | 100 | 50 | 40 | 60 | 2 | 16 | 2,30 | |
| CO 100x250 | 100 x 250 x | 160 | 40 | 85 | 40 | 50 | 50 | 4 | 16 | 2,7 |
Weldingplates for general use - calvulations
| Article nr. | Area of use | Calculations | Drawing |
| 04 071 | Skjære moment (kn) | Beregning 04 071 | 04 071 |
| 04 073 | Skjære moment (kn) | Beregning 04 073 | 04 073 |
| 04 081 | Skjære moment (kn) | Beregning 04 081 | 04 081 |
| 04 083 | Skjære moment (kn) | Beregning 04 083 | 04 083 |
| OB-400-0801 | Skjære moment (kn) | Beregning OB 400 0801 | OB 400 0801 |
| 04 509 0 | Skjære moment (kn) | Beregning 04 509 0 | 04 509 0 |
| HB 100x150 | Skjære moment (kn) | Beregning HB 100x150 | HB 100x150 |
| SB 100x200 | Skjære moment (kn) | Beregning SB 100x200 | SB 100x200 |
| CO 100x250 | Skjære moment (kn) | Beregning CO 100x250 | CO 100x250 |
