BWC 55-Light is a very good alternative to traditional thermal bridge breakers, or directly cast-in steel profiles for supporting balconies/valleys with front columns or inclined struts.

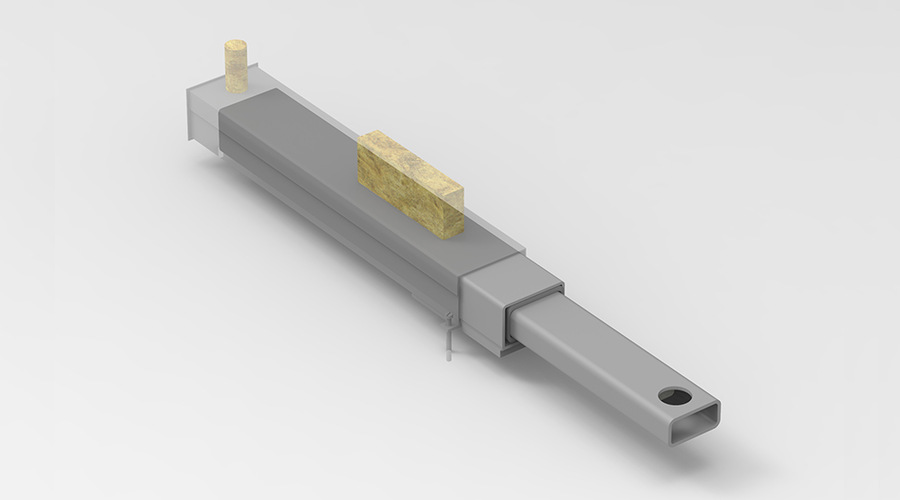

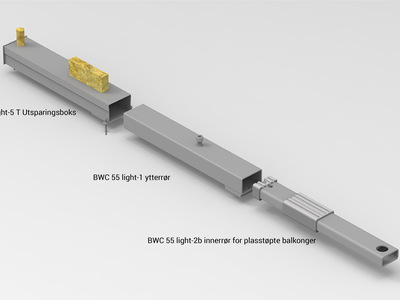

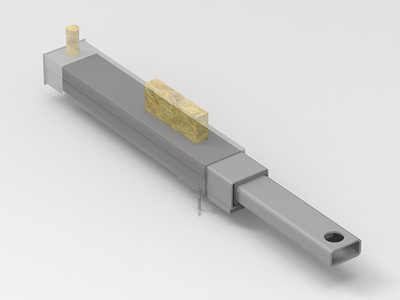

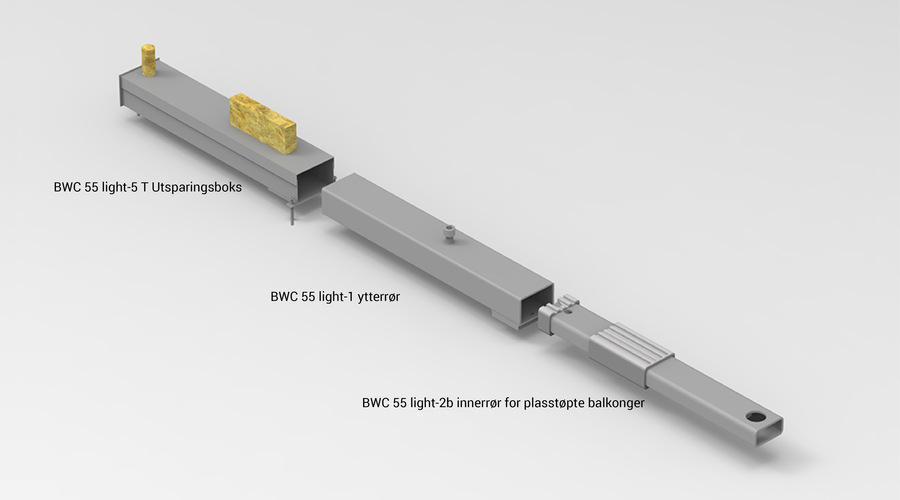

The system consists of several parts:

Cut-out box in the deck: If you choose to use this, the cut-out box is molded into the deck, and must be anchored with the specified anchoring reinforcement.

Outer tube: Alternatively, this can be molded directly into the deck, or threaded into an already established recess box. It is important that the outer tube is pulled far enough from the cover edge, so that it protrudes past the GU. This makes it easy to get around to sealing the outer pipe against the GU, with grout, cloth, tape etc

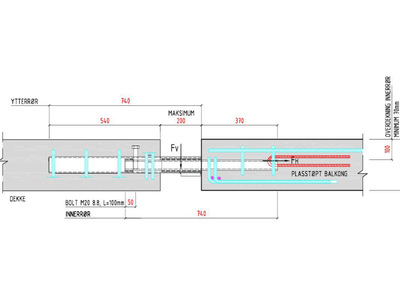

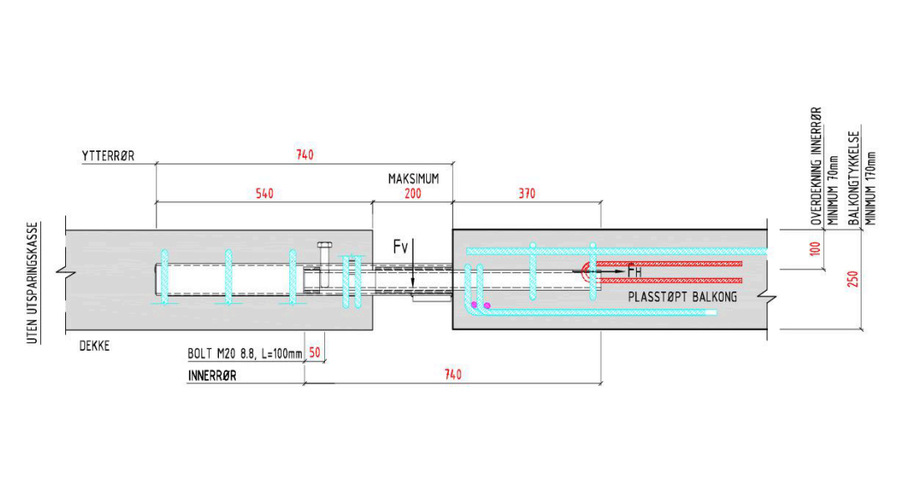

Inner tube: This is the part that connects the cover and the balcony element. This comes in several variants. It is most commonly combined with a cast-in balcony box (BWC 55-4), or it comes with a welded-on angle. If a balcony or corridor is to be cast in place, the inner pipe is extended, and it is reinforced directly on the inner tube.

All parts are made of steel S355, and hot-dip galvanized.

See more in Invisible Connections® Memo 701b side 2
