TSS 101, telescopic connection

Products→
Stair-landing connections→
Landing - wall connections→
TSS 101, telescopic connection

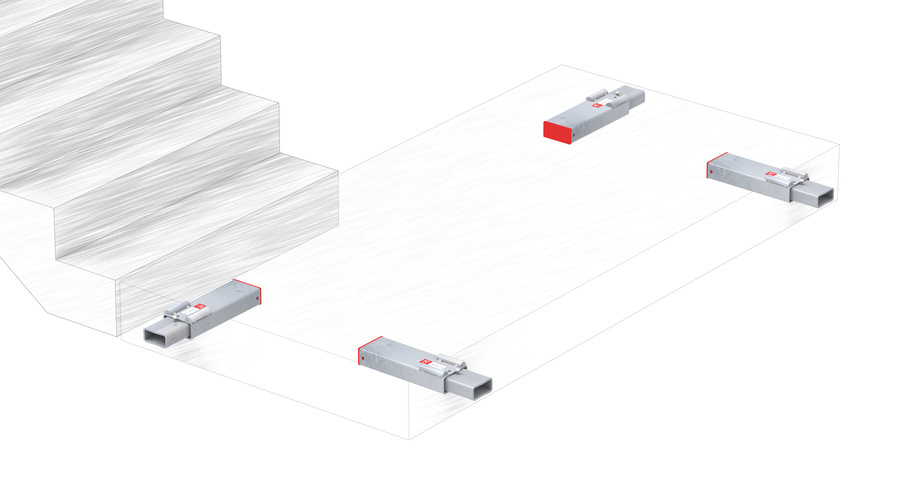

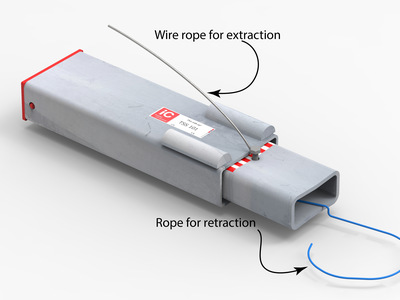

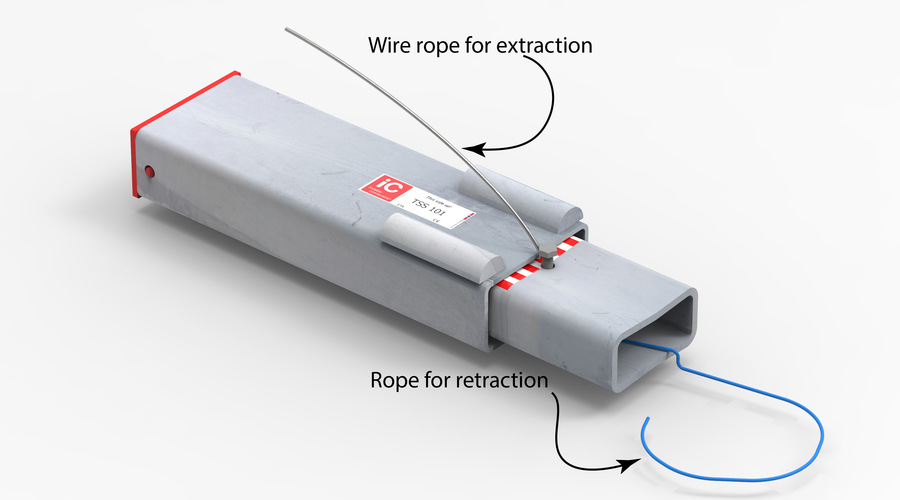

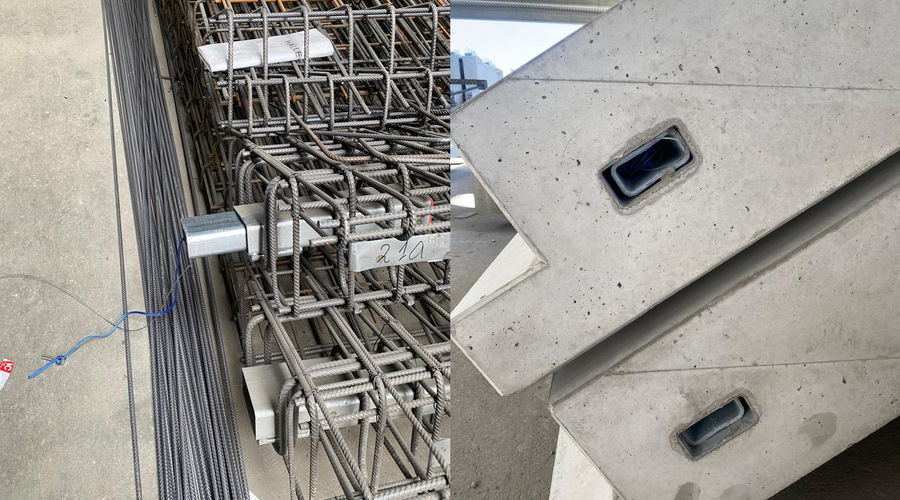

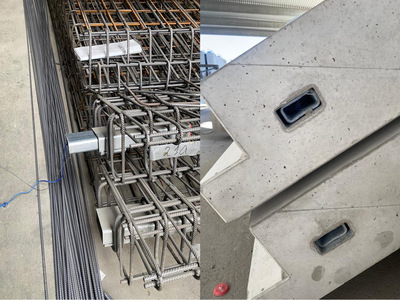

TSS 101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position.

The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.

Invisible Connections TSS 101 is supplied in black steel or galvanized.

Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.

For soundreduction combine with: IC Box 100 SRU

Product information

Recommended maximum ULS load Fv,Ed [kN]	100 kN
Minimum landing thickness	170 mm with reduced capacity
Weight black steel/galvanized version	8,15 kg/8,25 kg
Sound transmission with vertical rubber flange:	Reduce sound impact by 10-12 dB

Technical information / Memo

Engineering / design

Memo no	Name/download	Format
TSS/RVK V1.5	Calculations tool, stair connections	Excel
Memo no 31	Guidance, stair connections	PDF
Memo no 41	Additional products, stair connections	PDF
Memo no 45	Fire protection, stair connections	PDF
Memo no 47	Impact sound transmission, stair connections	PDF
Memo no 54	Technical specifications, stair connections	PDF
Memo no 55	Anchoring reinforcement, stair connections	PDF
Memo no 64	Anchoring reinforcement, units in pair, cc 250, stair connections	PDF
Memo no 65	Anchoring reinforcement, stair connections - TSS 20 FA	PDF
Memo no 65 A	Anhoring reinforcement, stair connections - TSS 25 L	PDF

Production / assembly

Memo no	Name/download	Format
Memo TSS/RVK	Memo TSS RVK RECOMMENDED PRODUCTION	PDF
Memo no 20	RVK, Production procedure	PDF
Memo no 32	TSS, Production procedure.	PDF
Memo no 66	TSS 20 FA, assembling guidance.	PDF

Seismic zones TSS - RVK

Memo no	Name/download	Format
	Calcyl, Earthquake.	Excel
Des Bull	Des Bull Report.	PDF
	Analyses of stairwells performace and damage during Wenchuan earthquake.	PDF
Memo no 70	iC solution for earthquake and stairs.	PDF
Memo no 71	iC solution for earthquake and stairs spreadsheet.	PDF
Memo no 72	iC solution for earthquake and stairs additional reinforcement.	PDF

Technical information - Drawing

Drawings

It is possible to order a model with reinforcement for several cover thicknesses, get in touch.

Article no	Step	DWG 2D	IFC	IFC - reinforcement	PDF


TSS 101	TSS 101	TSS 101	TSS 101	TSS 101 265mm.IFC	TSS 101

Use with

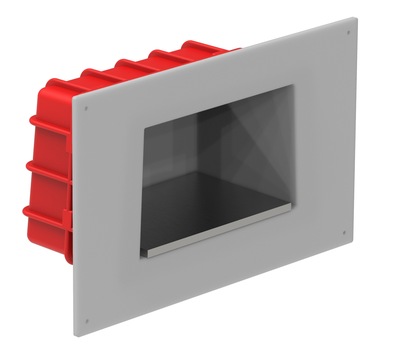

IC Box 100 SRU, recess box with soundreduction

IC Box SRU - Sound Reduction Unit.

IC Box 100 SRU is a specially designed product for making recesses in concrete walls, prefabricated or cast in-situ. The product is designed to be used with TSS and RVK.

IC Box 100 SRU provides good tolerances both vertically (40 mm) and horizontally (75 mm). IC Box is produced in durable and recycled PE. The sound reduction unit is made of elastomer and and a steel shims to transfer the load.

IC Box is reinforced with ribs on all sides. This provides good anchoring to the concrete wall.

Sound reduction in wall 20-28 dB

Recess box for wall. Made of recycled HDPE, with SRU sound reduction unit.

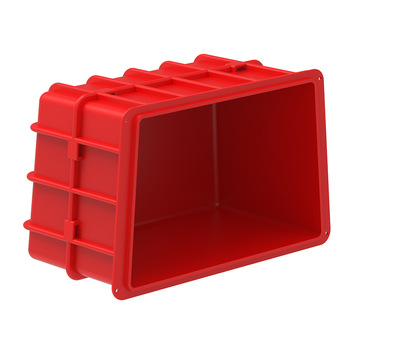

IC Box 100, recess box

IC Box 100 is a specially designed product for making recesses in concrete walls, prefabricated or cast in-situ. The product is designed to be used with TSS and RVK.

IC Box 100 provides good tolerances both vertically (55 mm) and horizontally (90 mm). IC Box is produced in durable and recycled PE.

IC Box is reinforced with ribs on all sides. This provides good anchoring to the concrete wall.

Recess box for wall. Made of recycled HDPE.

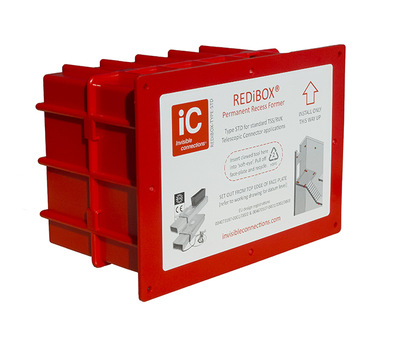

REDiBOX, recess box

REDiBOX is a specially designed product for making recesses in concrete walls with sliding form-works. The product is designed to be used with TSS and RVK.

REDiBOX provides good tolerances both vertically (78 mm) and horizontally (95 mm). REDiBOX is produced in durable HDPE.

REDiBOX is reinforced with ribs on all sides. This provides good anchoring to the concrete wall. On the back of the removable front plate there is an edge that maintains the shape of the box under concrete pressure. This also ensures that the box is tight during casting.

Is made of HDPE.

Can be combined with SRU unit for sound reduction.

Recess box for wall with cover. Made of HDPE. Suitable for slip formwork.

Rubberflenge GF 25, 60, 100, 102

Vertical rubber flange is our recommended method for soundreduction in schools, hospitals, hotels, meeting rooms, offices.

Reduce stepsound with 10-12 dB.

Vertical rubber flange for sound reduction.

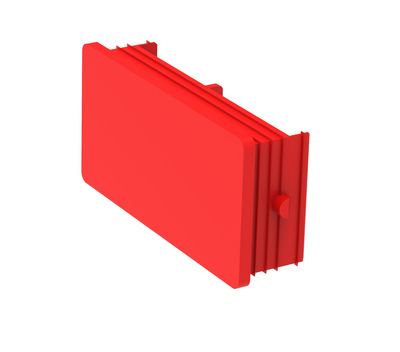

Cover 101, 102

Cover for sealing during storage and transport. For RVK/TSS 101 and TSS 102.

Made of recycled PE material.

Cover for sealing when storing/transporting RVK/TSS 101 and TSS 102.

Movies

Stairconnection Architects
Stairconnection Engineer
Stairconnection production
Stairconnection installation 1
Stairconnection installation 2
Stairconnection stairs in earthquake
Stairconnection earthquake installation

Brochures

Brochuresfor downloading

Recommended maximum ULS load Fv,Ed [kN]	100 kN
Minimum landing thickness	170 mm with reduced capacity
Weight black steel/galvanized version	8,15 kg/8,25 kg
Sound transmission with vertical rubber flange:	Reduce sound impact by 10-12 dB
