BSF 300kN, Bean-beam connection
- Products→
- Beam-column connections→
- Beam-beam→
- BSF 300kN, Bean-beam connection

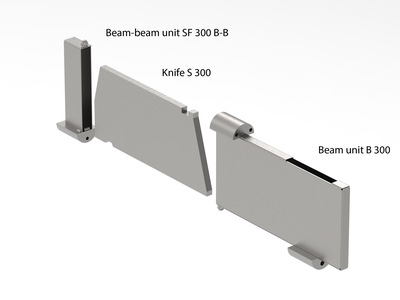

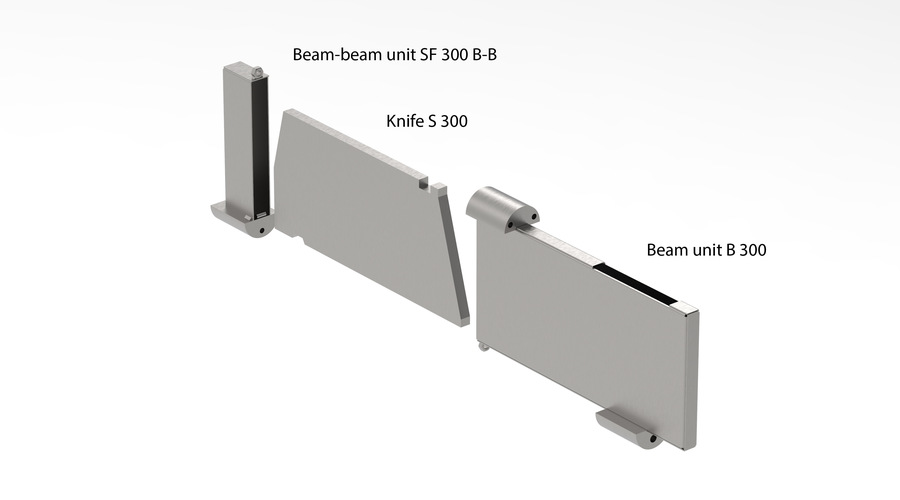

BSF is a console-free system and consists of three parts:
- Beam unit: Cast into the concrete beam and must be anchored with specified anchoring reinforcement.
- Beam-beam unit: Cast into the concrete beam and must be anchored with specified anchoring reinforcement.
- Knife/sledge: Connect the beam to the column. This is made of solid steel and forms the part of the connection that transfers the load from the beam to the column. Before beam assembly, the knife is retracted and hidden inside the beam unit.
All parts are made of steel. The three main components are in steel grade S355. Threaded rods are quality 8.8, and stop washers are in steel quality S355.
Design principles
When deployed, the sliding knife cantilevers from the beam into the beam-beam unit. It bears onto the base of the beam-beam unit at the free end, which induces rotation of the knife. This is resisted by bearing against half-round bearing blocks in the beam. These half-round blocks in turn bear against reinforcement which is not shown.
Product Information
Maximum capacity | 300 kN |
Minimum column width | 280 mm |
Minimum beam dimension | 190 x 420 mm |
Weight S 300, knife | 17,00 kg |
Weight B 300, beam unit | 8,00 kg |
Weight SF 300 B-B, column unit | 2,60 kg |
Technical information / Memo
BSF Technical information - Project planning
Memo no | Name/download | Format | |
---|---|---|---|
Memo no 501 | BSF, capacities and minimum beam and column dimensions. | ||
Memo no 502 | BSF, main dimensions. | ||
Memo no 503 | BSF, reference levels in design. | ||
Memo no 504 | BSF, tolerances. | ||
Memo no 505 | BSF, torsion. | ||
Memo no 506 | BSF, expansion joints. | ||
Memo no 507 | BSF, seismic proposal. | ||
Memo no 508 | BSF connection solution. | ||
Memo no 509 | BSF, winter conditions fire protection & corrosion. | ||
Memo no 510 | BSF, marking of the units. | ||
Memo no 551 | BSF, a short guide to BSF sliding inserts. |
BSF Technical information - Dimensioning
Memo no | Name/download | Format | |
---|---|---|---|
Excel | BSF Calculations | Excel | |
Memo no 521 | BSF, design of reinforcement. | ||
Memo no 522a | BSF 225, reinforcement in beam end. | ||
Memo no 522b | BSF 300, reinforcement in beam end. | ||
Memo no 522c | BSF 450, reinforcement in beam end. | ||
Memo no 522d | BSF 700, reinforcement in beam end. | ||
Memo no 522e | BSF 1100, reinforcement in beam end | ||
Memo no 523 | BSF, example reinforcement pattern in column. | ||
Memo no 524 | BSF, design of reinforcement, units used in pairs. | ||
Memo no 525 | BSF, design of reinforcement cantilivered beam-beam. | ||
Memo no 526 | BSF, design of reinforcement T-connection beam-beam. | ||
Memo no 527 | BSF, two sided t-connection beam-beam. |
BSF Technical information - Assembly
Memo no | Name/download | Format | |
---|---|---|---|
Memo no 540 | BSF, installation on site and sealing of joint. | ||
Memo no 541 | BSF, plumb position of beams. | ||
Memo no 550 | BSF, practical advice for units in pairs. | ||
Memo no 552 | BSF, production. |
Technical information / drawings
Drawings BSF 300
Picture | Modell | STP | DWG 2D | IFC | |
---|---|---|---|---|---|
B 300 | B300.STP | B300.DWG2D | B300.IFC | ||
S 300 | S300.STP | S300.DWG2D | S300.IFC | ||
SF 300 B-B | SF300B-B.STP | SF300B-B.DWG2D | SF300B-B.IFC |
Movies
Beam-column connection Architects
Beam-column connection Engineers
Beam-column connection production
Beam-column connection installation
Brochures
Brochures for downloading
BSF Connections | |||||
BSF Calculations |
