BWC WB with balcony box BWC 55-4
- Products→
- Balcony connections→
- Balcony connection with shear(kN) force for sandwich wall→
- BWC WB with balcony box BWC 55-4
BWC WB - Balcony Wall Connection Wall Bracket
Developed for use in prefabricated concrete sandwich walls (insulated wall elements). This is a pure shear connection that is used in walls where balconies have front columns or inclined braces. The system can also be used on steel columns, RHS profiles etc
The system consists of several parts:
BWC WB: The part that is molded into the factory that produces the wall elements, and flush with the outer layer.
Inner tube: This is the part that connects the cover and the balcony element.
BWC 55-4: is the part that is cast into the element by the concrete element manufacturer. This has good tolerance both vertically and horizontally. It is equipped with a screw that has a height adjustment function and locks the element horizontally. It is also equipped with a filling tube, for casting after assembly.
All parts are made of steel S355, and hot-dip galvanized.
See more in Invisible Connections® Memo 705
| Max. shear force(kN) | 55 kN | |
| Max. breaking load horizontal(kN) | 20 kN |

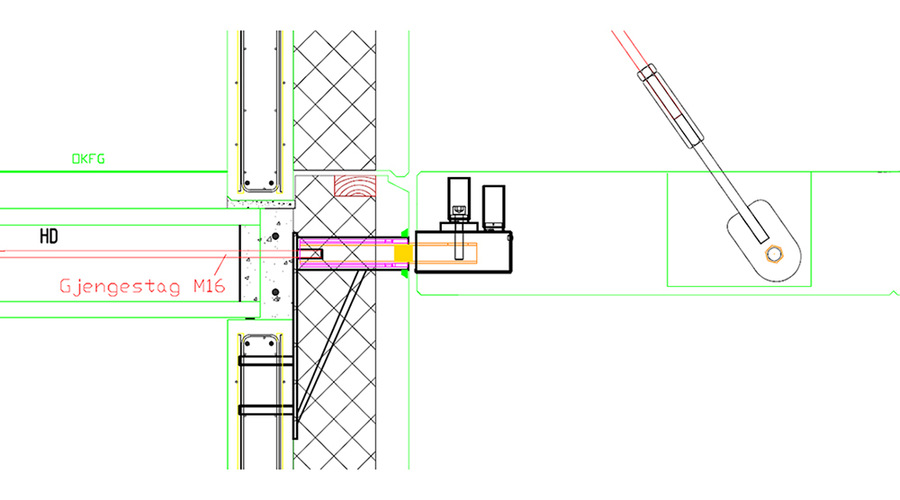

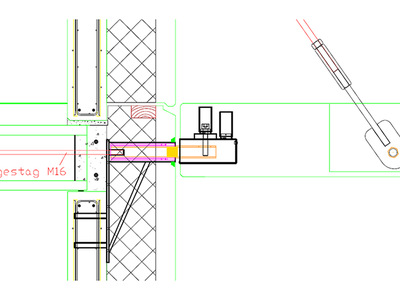

| BWC WB The goals are project specific |  |
| BWC 55 light inner tube The goals are project specific |  |

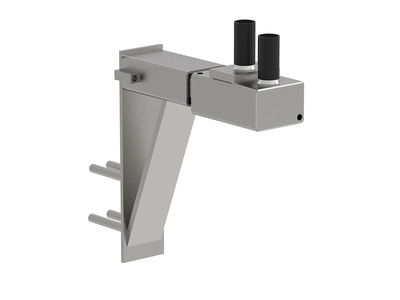

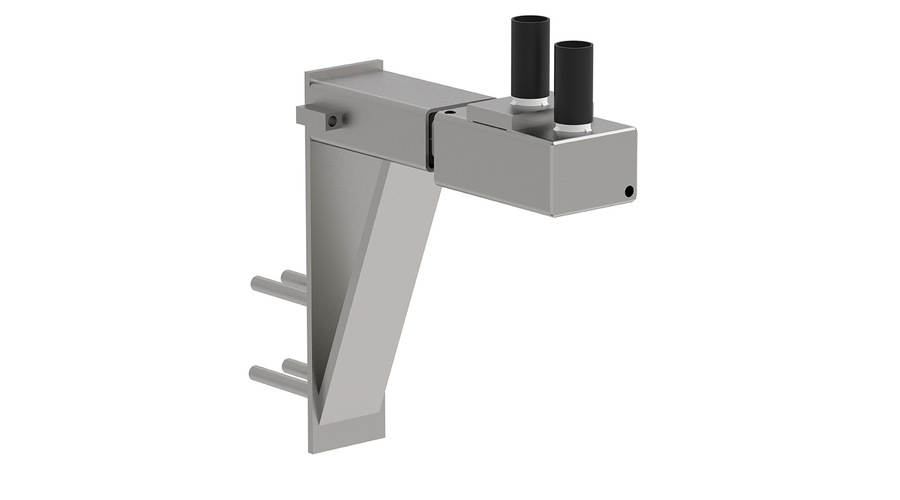

| BWC 55-4 |  |
Technical information / Memo
| Memo nr | Navn / nedlastning | Format | |
|---|---|---|---|
| Memo nr 700 | BWC 55 740 BWC 55 LIGHT VEILEDNING | PFD |  |
| Memo nr 701b | BWC 55 light, tekniske spesifikasjoner | PFD | |
| Memo nr 702b | BWC 55 light, beregning av forankringsarmering | PFD | |
| Memo nr 703b | BWC 55 light, eksempel forankringsarmering | PFD | |
| Memo nr 704 | BWC 55 740 og BWC 55 Light, eksempel | PFD | |
| Memo nr 705 | BWC WB for isolerte veggelement | PFD | |
Balcony connection (shear) light installation
Balcony connection (shear) light production
Balcony connection (shear) light Engineer
Balcony connection (shear) light Architect
Presentasjon: Veiledning for balkong
| Balkongbrosjyre m søyler i front |  |
