BWC 55 light with angle for negative load
- Products→
- Balcony connections→
- Balcony connection with shear(kN) force and simpel waterproofing→
- BWC 55 light with angle for negative load
BWC 55-Light is a very good alternative to traditional thermal bridge breakers, or directly cast-in steel profiles for supporting balconies with front columns or inclined struts.
The system consists of two parts:

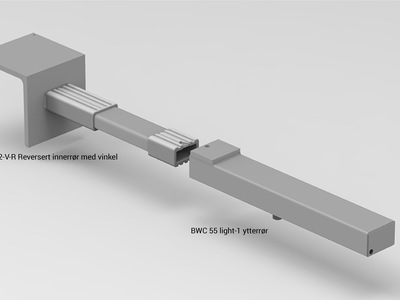

Outer tube BWC 55 light-1: Alternatively, this can be molded directly into the deck, or threaded into an already established recess box. It is important that the outer tube is pulled far enough from the cover edge, so that it protrudes past the GU. This makes it easy to get around to sealing the outer pipe against the GU, with grout, cloth, tape etc

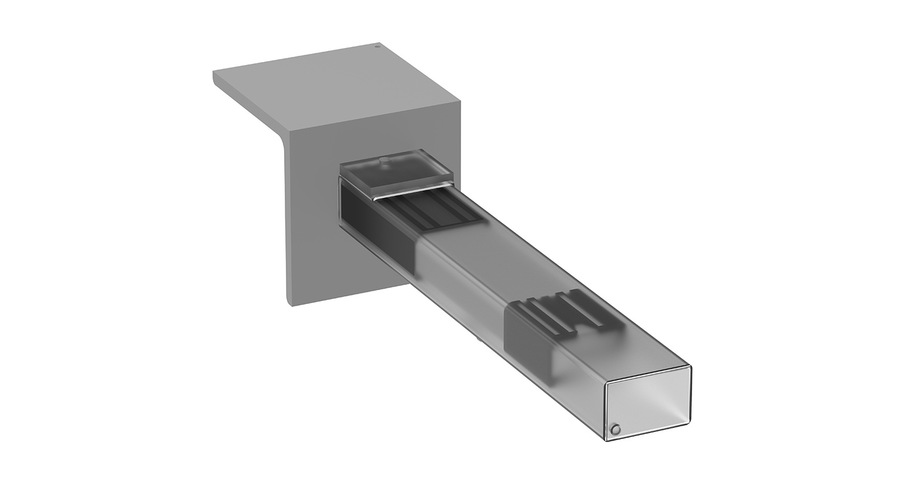

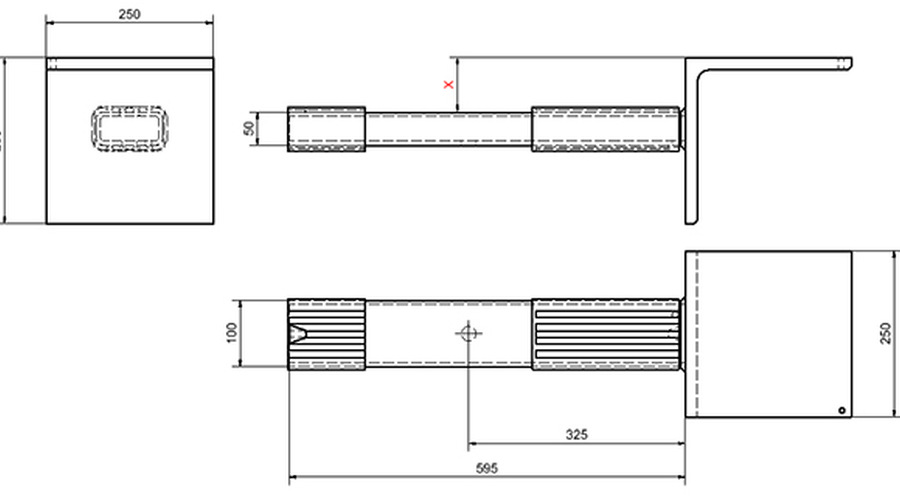

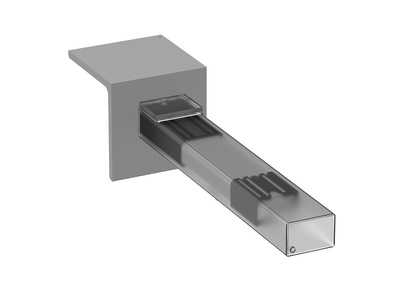

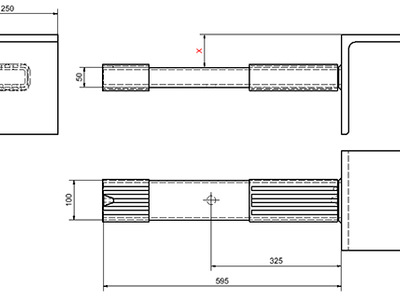

Inner tube an angel BWC 55 light 2-V-R: This is the part that connects the cover and the balcony element. On the construction site, the inner tube with a welded angle is inserted into the outer tube and locked. The element is lifted into place and the angle comes into contact with the already established welding plate in the cover edge, and is welded firmly.
When a carpenter establishes the climate wall, it is important to have planned so that it should be easy to get to in order to seal around the outer tube towards the GU, with joint, cloth, tape (see sketch).
All parts are made of steel S355, and hot-dip galvanized.
See more in Invisible Connections® Memo 701b side 5
breaking load vertical | Straight angle steel angle | Fv = 60 kN |
Breaking load horizontal | FH=20 kN |
WC 55-light-1 outer tube | |
BWC 55-light-2-V-R inner tube |
