BWC 55-740 for cast-in-place balconies
- Balcony connections→
- Balcony connection with shear(kN) force and waterproofing→
- BWC 55-740 for cast-in-place balconies
BWC 55-740 is a very good alternative to traditional thermal bridge breakers, or directly cast-in steel profiles for supporting balconies with front columns or inclined struts.

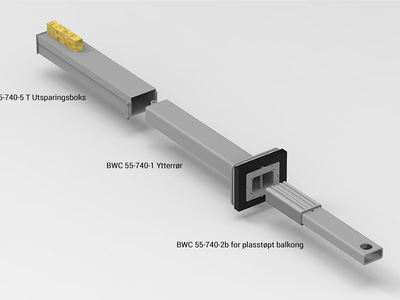

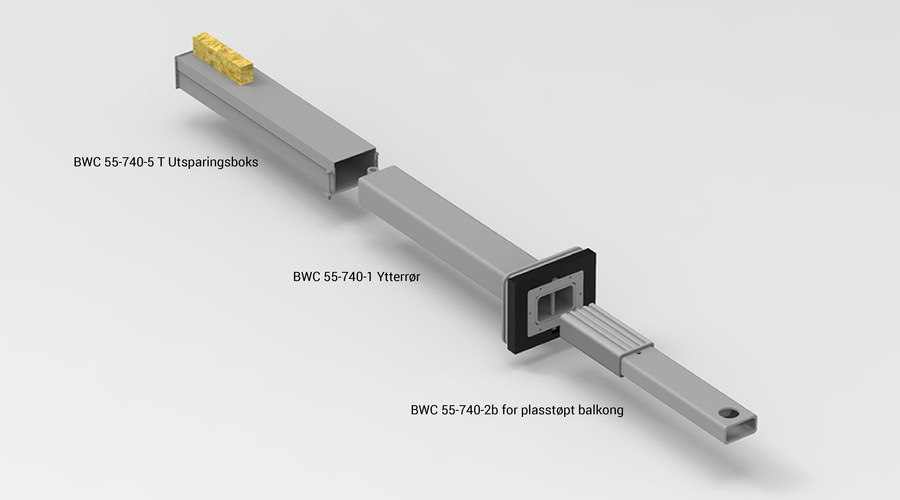

The system consists of several parts:
Cut-out box in the deck: If you choose to use this, the cut-out box is molded into the slab, and must be anchored with the specified anchoring reinforcement.
Outer tube: Alternatively, this can be molded directly into the slab, or threaded into an already established recess box. This model is equipped with a clamping flange system against GU, which keeps the water on the outside. If you choose to cast the outer tube directly into the tyre, we recommend that it is taken with our rubber cuff (700x700 mm) which takes up any casting deviations, and is glued to the GU.

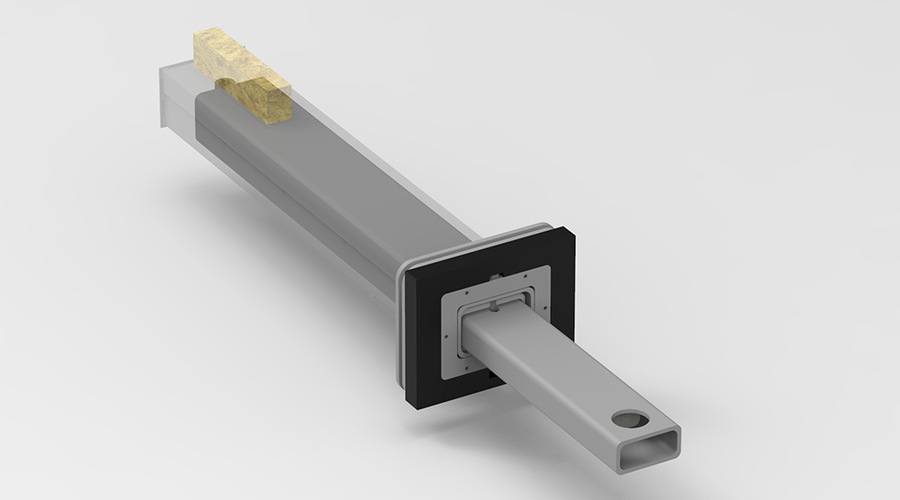

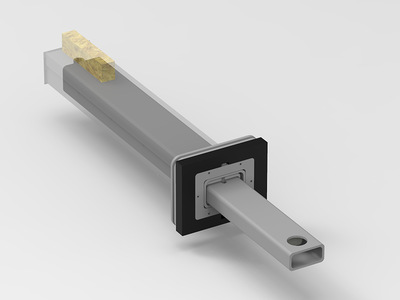

Inner tube: This is the part that connects the cover and the balcony element. This comes in several variants. It is most commonly combined with a cast-in balcony box (BWC 55-4), or it comes with a welded-on angle. If a balcony or corridor is to be cast in place, the inner pipe is extended, and it is reinforced directly on the inner pipe.
All parts are made of steel S355, and hot-dip galvanized.

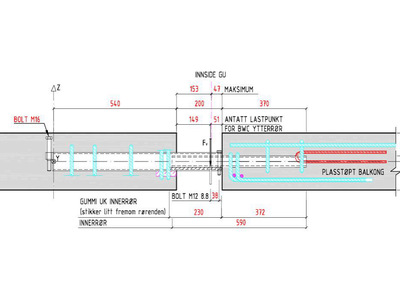

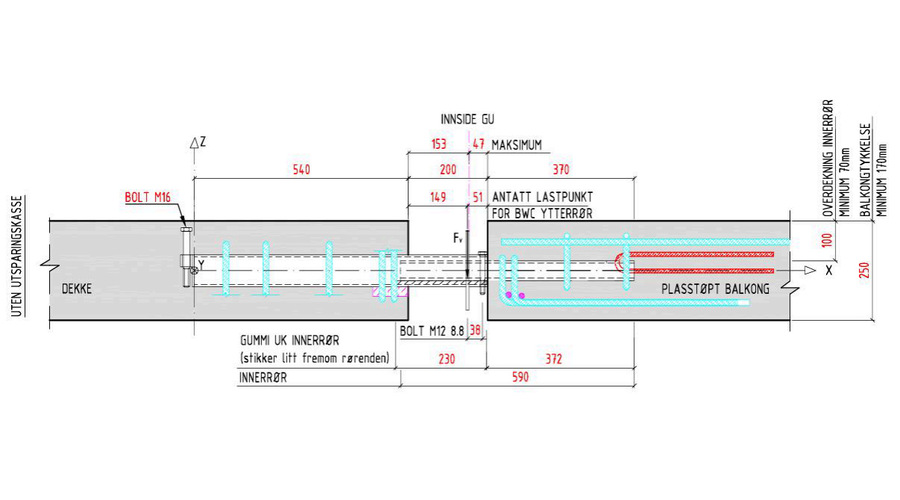

See more in Invisible Connections® Memo 701a side 6.
|Max. shear force(kN)
|Fv = 60 kN
|Max. breaking load horizontal(kN)
|FH = 20 kN
|BWC 55-740-1 outer tube
|BWC 55-740-2b inner tube
