IC Box 100 SRU, recess box with soundreduction
- Products→
- Stair-landing connections→
- Wall recess→
- IC Box 100 SRU, recess box with soundreduction
IC Box SRU - Sound Reduction Unit.

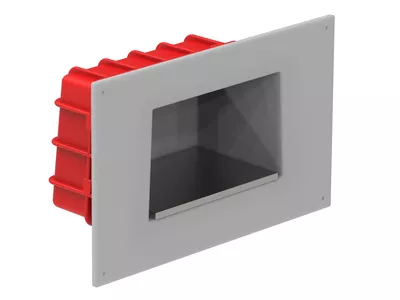

IC Box 100 SRU is a specially designed product for making recesses in concrete walls, prefabricated or cast in-situ. The product is designed to be used with TSS and RVK.
IC Box 100 SRU provides good tolerances both vertically (40 mm) and horizontally (75 mm). IC Box is produced in durable and recycled PE. The sound reduction unit is made of elastomer and and a steel shims to transfer the load.
IC Box is reinforced with ribs on all sides. This provides good anchoring to the concrete wall.
Sound reduction in wall 20-28 dB
Product information
| Weight | 1,78 kg |
| Inside measure | w 150mm - h from shims 85mm - d 99mm |
Engineering / design
| Memo no | Name/download | Format | |
|---|---|---|---|
| TSS/RVK V1.5 | Calculations tool, stair connections | Excel |  |
| Memo no 31 | Guidance, stair connections |  | |
| Memo no 41 | Additional products, stair connections | | |
| Memo no 45 | Fire protection, stair connections | | |
| Memo no 47 | Impact sound transmission, stair connections | | |
| Memo no 54 | Technical specifications, stair connections | | |
| Memo no 55 | Anchoring reinforcement, stair connections | | |
| Memo no 64 | Anchoring reinforcement, units in pair, cc 250, stair connections | | |
| Memo no 65 | Anchoring reinforcement, stair connections - TSS 20 FA | | |
| Memo no 65 A | Anhoring reinforcement, stair connections - TSS 25 L | |
Production / assembly
| Memo no | Name/download | Format | |
|---|---|---|---|
| Memo TSS/RVK | Memo TSS RVK RECOMMENDED PRODUCTION | | |
| Memo no 20 | RVK, Production procedure | | |
| Memo no 32 | TSS, Production procedure. | | |
| Memo no 66 | TSS 20 FA, assembling guidance. | |
Seismic zones TSS - RVK
| Memo no | Name/download | Format | |
|---|---|---|---|
| Calcyl, Earthquake. | Excel | | |
| Des Bull | Des Bull Report. | | |
| Analyses of stairwells performace and damage during Wenchuan earthquake. | | ||
| Memo no 70 | iC solution for earthquake and stairs. | | |
| Memo no 71 | iC solution for earthquake and stairs spreadsheet. | | |
| Memo no 72 | iC solution for earthquake and stairs additional reinforcement. | |
| Picture | Article |
Step |
DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|
 | IC Box 100 SRU | IC Box 100 SRU | IC Box SRU 100 | IC SRU box 100 |
TSS 60 P consisting of an outer- and an inner tube.
The outer tube is made of 100% recycled PE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position. It also have user-friendly "clips" to place reinforcing bars in the correct position.
The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.
Invisible Connections TSS 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
TSS 60 P can be used between stair and landing, see picture below.
RVK 60 P stair connection consists of outer and inner tube.
The outer tube is made from 100% recycled PE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.
Invisible Connections RVK 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with IC Box 100 SRU
TSS 101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pulled out and in to the recess in the wall. The inner tube is pulled out/in with a wire/return rope. The unit has a control line that indicate the correct position of the inner tube. As well as a hole for a locking bolt which ensures that the inner tube stays in the correct position.
The TSS units are specially suitable where the elements are supplied with a finished surface from the factory, e.g. terrazzo.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
RVK101 stair connections consist of an outer tube and an inner tube. It contains of two hollow core sections, where the inner tube profile fits inside the outer tube. The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically.
Invisible Connections TSS 101 is supplied in black steel or galvanized.
Capacity 100 kN, minimum landing thickness 200 mm at full capacity, 170 mm with reduced capacity.
For soundreduction combine with: IC Box 100 SRU
