RVK 60 P, telescopic connection

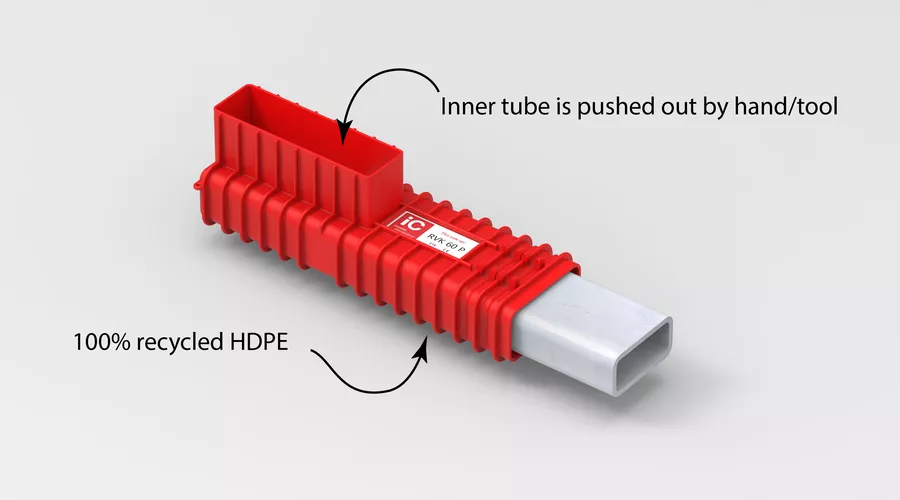

RVK 60 P stair connection consists of outer and inner tube.

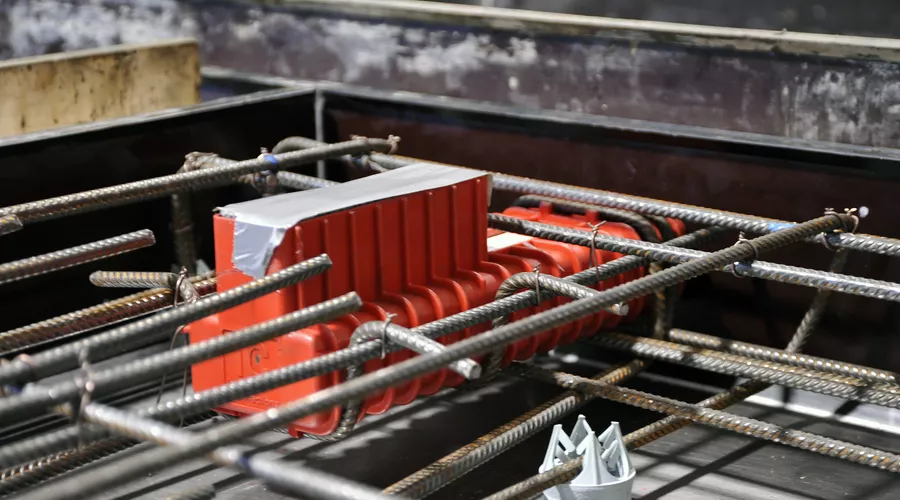

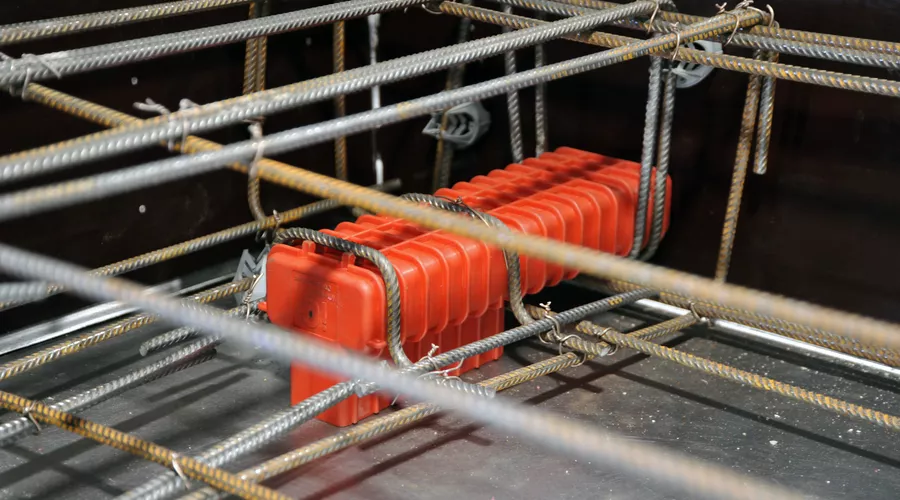

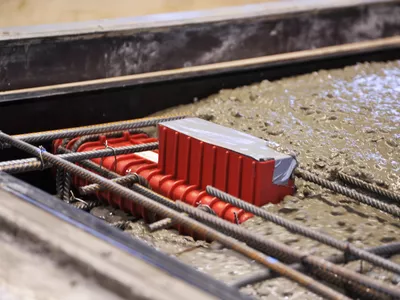

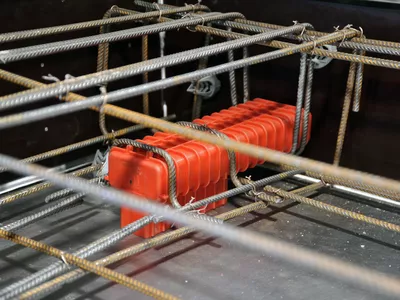

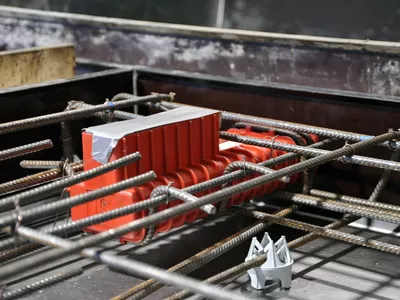

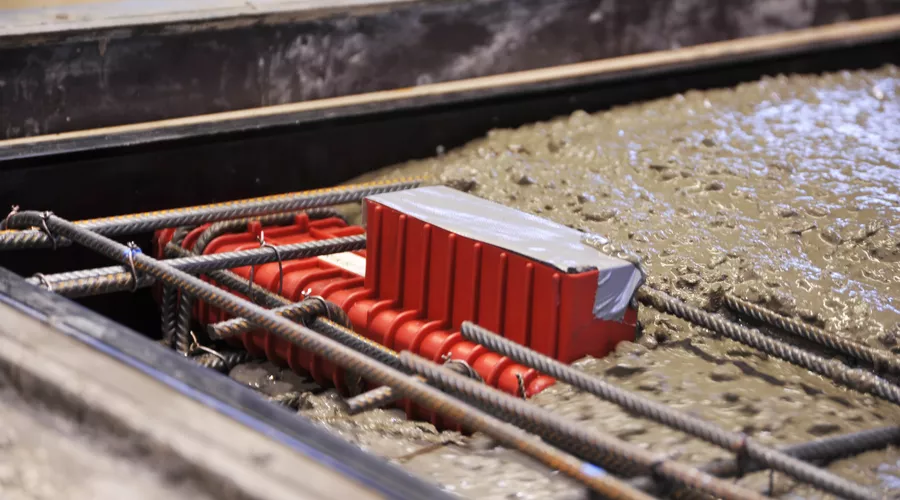

The outer tube is made from 100% recycled PE and made to fit on the outside of the inner tube.

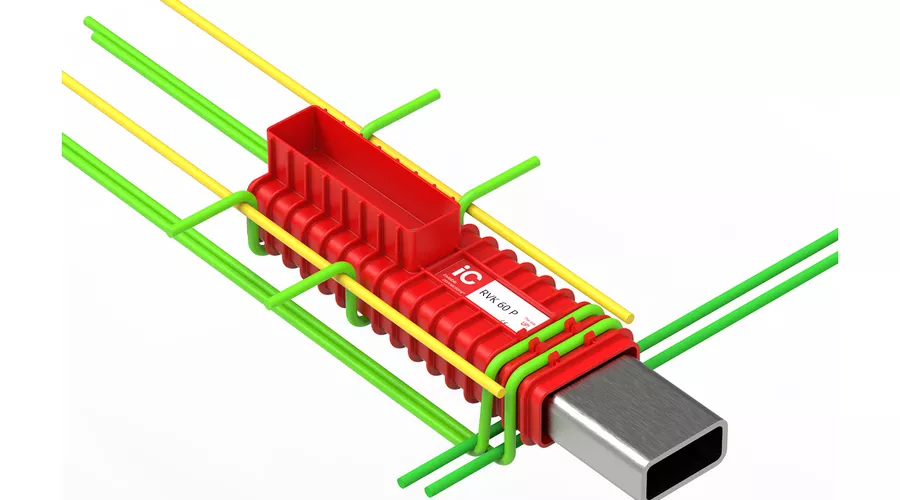

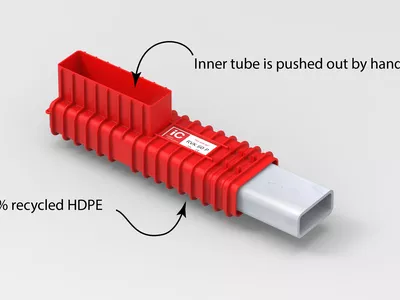

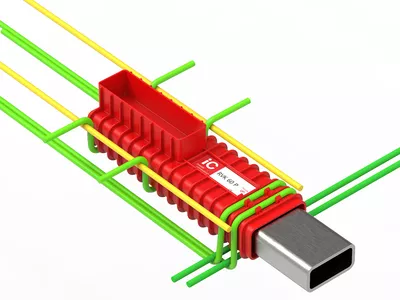

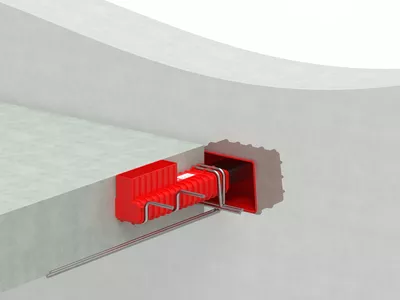

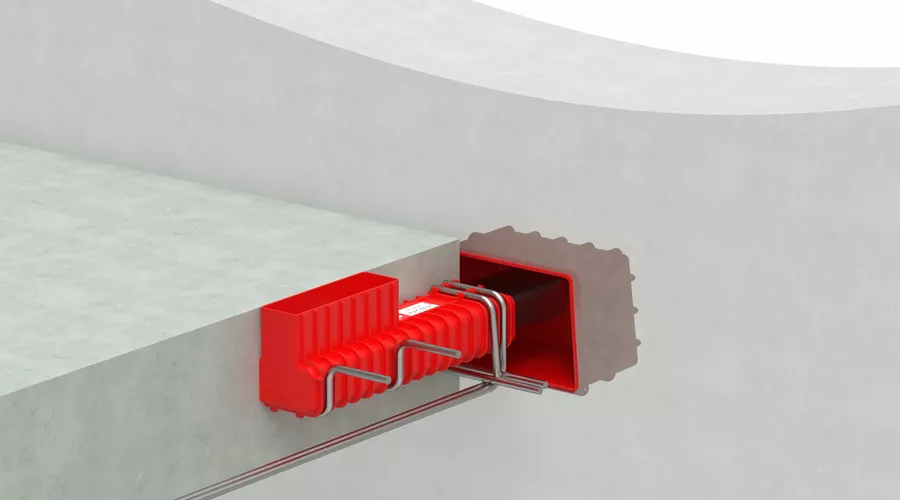

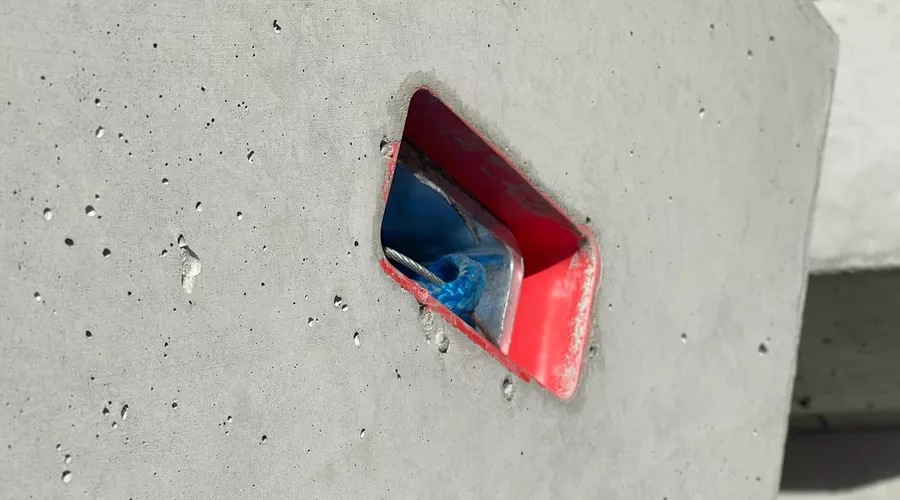

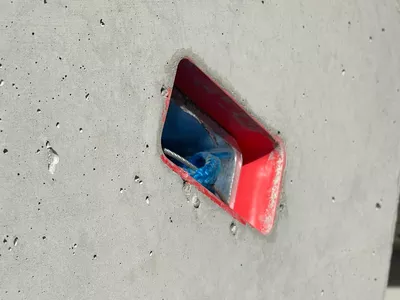

The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.

Invisible Connections RVK 60 P is supplied in black steel or galvanized.

Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.

For soundreduction combine with IC Box 100 SRU

Product information

Recommended maximum ULS load Fv,Ed [kN]	57 kN
Minimum landing thickness	170 mm at full capacity, 120 mm with reduced capacity
Weight black steel/galvanized version	2,80 kg/2,85 kg

Technical information / Memo

Technical information - Drawing

Use with

Sustainability

Movies

Brochures

Recommended maximum ULS load Fv,Ed [kN]	57 kN
Minimum landing thickness	170 mm at full capacity, 120 mm with reduced capacity
Weight black steel/galvanized version	2,80 kg/2,85 kg

Engineering / design

Memo no	Name/download	Format
TSSRVK v1.6E	Calculationstool	PDF
Memo no 31	Guidance, stair connections	PDF
Memo no 41	Additional products, stair connections	PDF
Memo no 45	Fire protection, stair connections	PDF
Memo no 47	Impact sound transmission, stair connections	PDF
Memo no 54	Technical specifications, stair connections	PDF
Memo no 55	Anchoring reinforcement, stair connections	PDF
Memo no 64	Anchoring reinforcement, units in pair, cc 250, stair connections	PDF
Memo no 65	Anchoring reinforcement, stair connections - TSS 20 FA	PDF
Memo no 65 A	Anhoring reinforcement, stair connections - TSS 25 L	PDF

Production / assembly

Memo no	Name/download	Format
Memo TSS/RVK	Memo TSS RVK RECOMMENDED PRODUCTION	PDF
Memo no 20	RVK, Production procedure	PDF
Memo no 32	TSS, Production procedure.	PDF
Memo no 66	TSS 20 FA, assembling guidance.	PDF

Seismic zones TSS - RVK

Memo no	Name/download	Format
	Calcyl, Earthquake.	Excel
Des Bull	Des Bull Report.	PDF
	Analyses of stairwells performace and damage during Wenchuan earthquake.	PDF
Memo no 70	iC solution for earthquake and stairs.	PDF
Memo no 71	iC solution for earthquake and stairs spreadsheet.	PDF
Memo no 72	iC solution for earthquake and stairs additional reinforcement.	PDF

Picture	Product	Step	DWG 2D	IFC	PDF
	RVK 60 P	RVK 60	RVK 60	RVK 60 p	RVK 60 P

IC Box 100 SRU, recess box with soundreduction

IC Box SRU - Sound Reduction Unit.

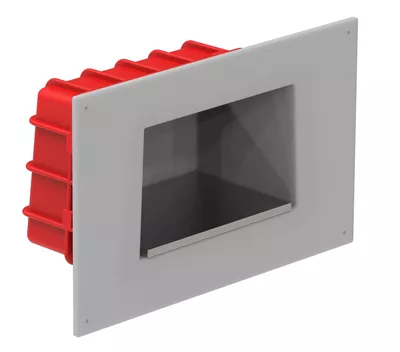

IC Box 100 SRU is a specially designed product for making recesses in concrete walls, prefabricated or cast in-situ. The product is designed to be used with TSS and RVK.

IC Box 100 SRU provides good tolerances both vertically (40 mm) and horizontally (75 mm). IC Box is produced in durable and recycled PE. The sound reduction unit is made of elastomer and and a steel shims to transfer the load.

IC Box is reinforced with ribs on all sides. This provides good anchoring to the concrete wall.

Sound reduction in wall 20-28 dB

Recess box for wall. Made of recycled HDPE, with SRU sound reduction unit.

IC Box 100, recess box

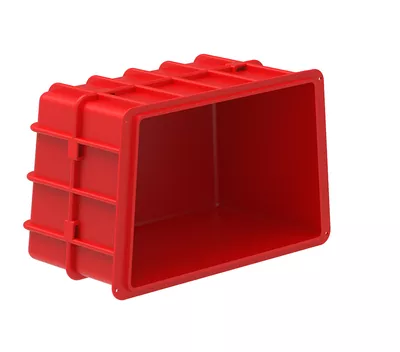

IC Box 100 is a specially designed product for making recesses in concrete walls, prefabricated or cast in-situ. The product is designed to be used with TSS and RVK.

IC Box 100 provides good tolerances both vertically (55 mm) and horizontally (90 mm). IC Box is produced in durable and recycled PE.

IC Box is reinforced with ribs on all sides. This provides good anchoring to the concrete wall.

Recess box for wall. Made of recycled HDPE.

REDiBOX, recess box

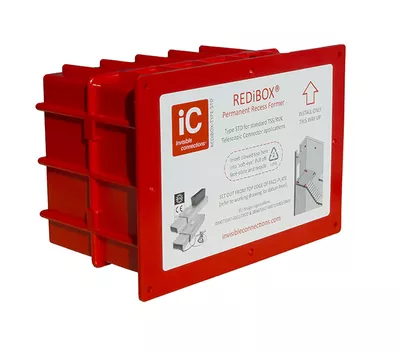

REDiBOX is a specially designed product for making recesses in concrete walls with sliding form-works. The product is designed to be used with TSS and RVK.

REDiBOX provides good tolerances both vertically (78 mm) and horizontally (95 mm). REDiBOX is produced in durable HDPE.

REDiBOX is reinforced with ribs on all sides. This provides good anchoring to the concrete wall. On the back of the removable front plate there is an edge that maintains the shape of the box under concrete pressure. This also ensures that the box is tight during casting.

Is made of HDPE.

Can be combined with SRU unit for sound reduction.

Recess box for wall with cover. Made of HDPE. Suitable for slip formwork.

Sustainability has more and more focus in the construction industry. So trying to make our products more sustainable and help the industry become greener is part of our strategy, and the idea for our new models. With the new models, we show that Invisible Connections takes sustainability seriously.

If we take the connection itself, then the outer tube is made of 100% recycled HDPE. When we replace the steel with a recycled HDPE, we reduce the steel consumption by 50%. Our new production line where these connections are produced is automated and we have thus reduced energy consumption.

We use renewable energy at our production facility. Choosing hydropower for our production facility is just one of several measures to reduce our environmental impact. The hydropower we use is produced locally, and provides a clean, flexible and reliable power supply.
