| Picture | Article |
Step |  DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|

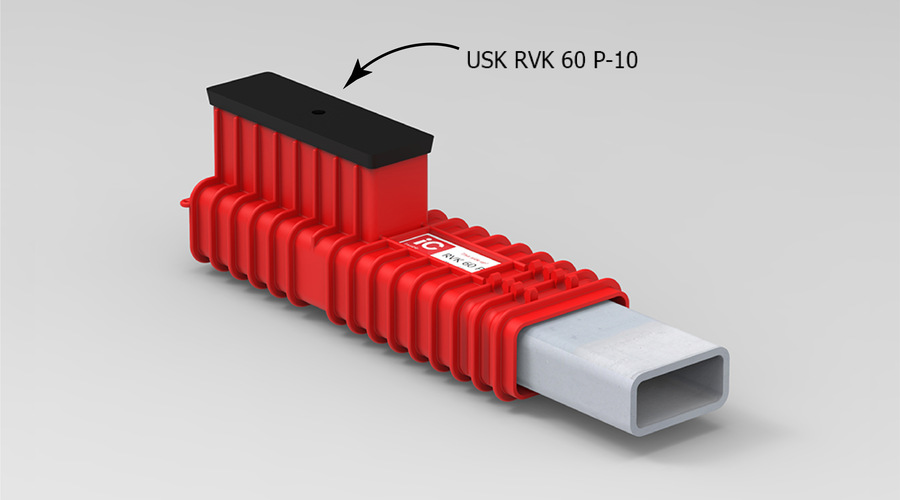

 | USK RVK 60 P-10 | USK RVK 60 P 10 | USK RVK 60 P 10 DWG 2 D | USK RVK 60 P 10 | USK RVK 60 P 10 |
| Picture | Article |
Step | DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|

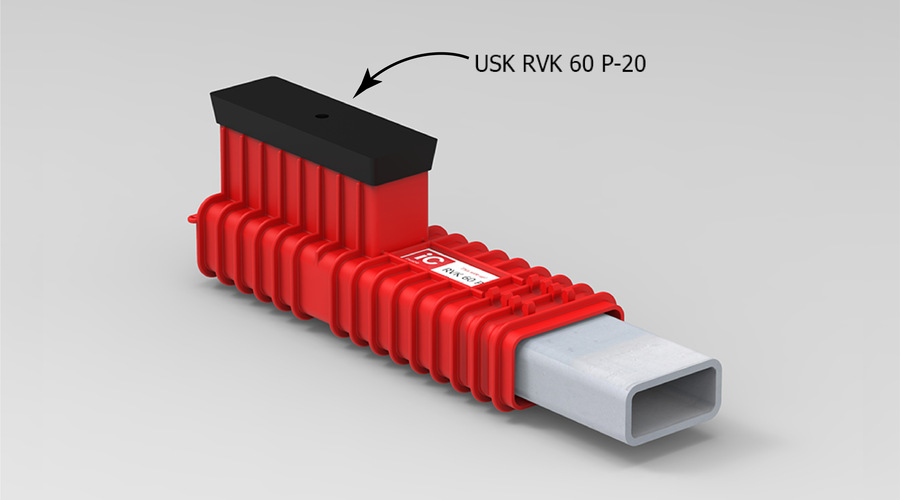

 | USK RVK 60 P-20 | USK RVK 60 P 20 | Utsparingskloss RVK 60 P 20 DWG 2 D | USK RVK 60 P 20 | USK RVK 60 P 20 |
RVK 60 P stair connection consists of outer and inner tube.
The outer tube is made from 100% recycled PE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.
Invisible Connections RVK 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with IC Box 100 SRU
Brochuresfor downloading
| Picture | Article |
Step | DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|

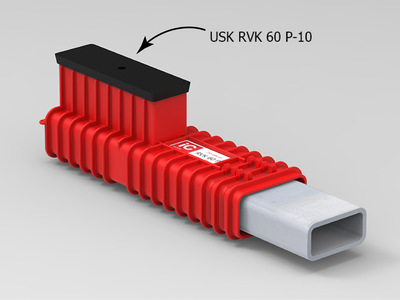

| USK RVK 60 P-10 | USK RVK 60 P 10 | USK RVK 60 P 10 DWG 2 D | USK RVK 60 P 10 | USK RVK 60 P 10 |
| Picture | Article |
Step | DWG 2D |
IFC |
PDF |
|---|---|---|---|---|---|

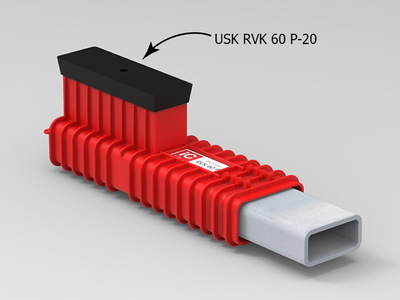

| USK RVK 60 P-20 | USK RVK 60 P 20 | Utsparingskloss RVK 60 P 20 DWG 2 D | USK RVK 60 P 20 | USK RVK 60 P 20 |
RVK 60 P stair connection consists of outer and inner tube.
The outer tube is made from 100% recycled PE and made to fit on the outside of the inner tube.
The inner tube will slide inside the outer tube and be pushed out and in to the recess in the wall. The inner tube is pushed out/in mechanically. User-friendly "clips" to place reinforcing bars in the correct position.
Invisible Connections RVK 60 P is supplied in black steel or galvanized.
Capacity 57 kN, minimum landing thickness 170 mm at full capacity, 120 mm with reduced capacity.
For soundreduction combine with IC Box 100 SRU
